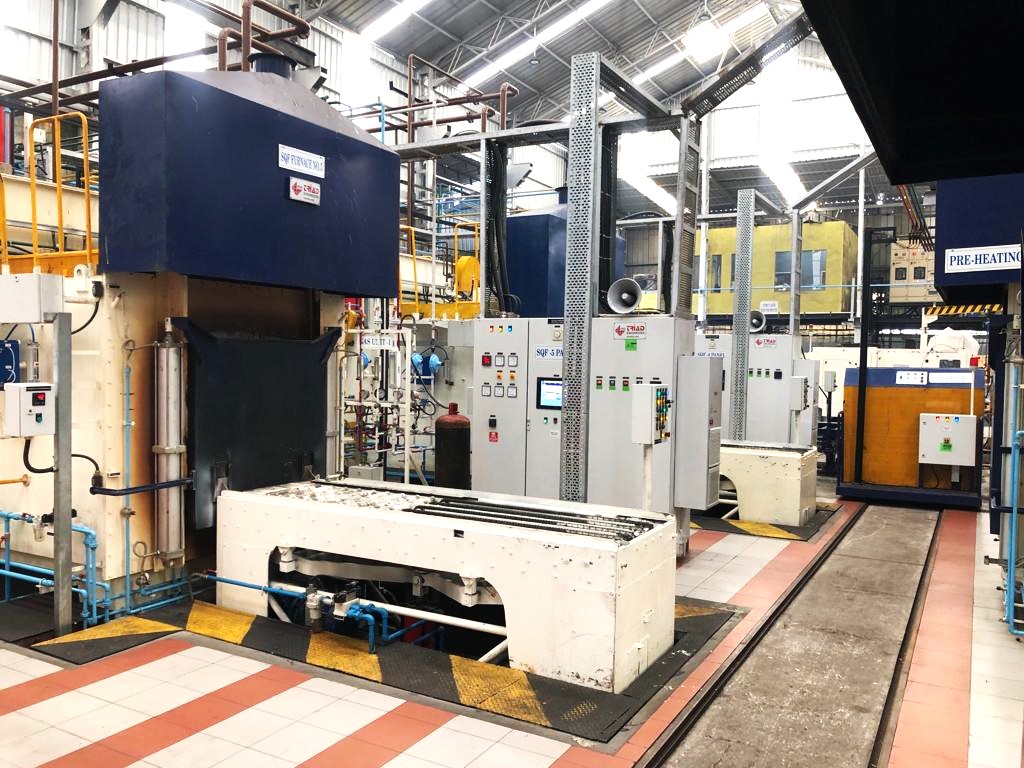

Sealed Quench Furnace

Triad Engineers is one of the leading manufacturers of Sealed Quench Furnaces with alli in India. These furnaces are crucial in heat treatment for metals and are very robust in design and applications. Our USP, is to offer customizable sizes, power ratings, to suit customer requirements.

The sealed environment minimized impurities, resulting in precise and consistent heat treatment of various metals and alloys.
One of the key benefits of Sealed Quench furnaces is that they prevent oxidation and decarburization during heating, ensuring the desired material properties like hardness and strength without compromising on surface quality.

The sealed quenching process ensures even heating and controlled cooling rates which minimized the risk of distortion in the metal. Our Sealed quench furnaces are electrically powered with automatic controls and have seamless integration with material handling systems. Heating of our Sealed Quench furnaces are through radiant tubes and incorporation of top fans ensure uniform temperature distribution.

Features

  • Max Capacity – Upto 1500 kg/batch
  • Atmosphere Supported – Methanol-LPG, Endo-LPG
  • Refractory – High grade insulating Imported bricks and boards
  • Heating Systems – Tubothal with Centre Rods
  • SCADA Controls for fully automated experience with single point of controls
  • Equipped with safety features such as temperature alarms, interlocking systems, and emergency shutdown mechanisms.
  • Equipped with advanced control systems that allow for precise temperature and process control.
  • Programmable logic controllers (PLCs) and human-machine interfaces (HMIs) for easy operation and monitoring.

Processes

  • Carburizing
  • Carbonitriding
  • Hardening & Tempering

Supportive Equipment

  • Material Handling Systems
  • SCADA
  • Pre Washer & Post Washer
  • Pre Heating & Post Tempering

Triad as Furnace maker offers designs and capabilities to the automotive ancillary Industry on Turnkey basis.
